pfff

Wednesday, April 18th, 2012

Our entry for the inflatable pfff competition. The form was scripted using python and rhinoscript – based on an earlier script for our 2010 tetra | n project.

S7B4X9_01_72dpi
S7B4X9_02_72dpi

Falling Sky Brewery

Wednesday, April 18th, 2012

Images of the finished Falling Sky Brewery project just before it opened. The finished tables used fir that was reclaimed from an old garage on site. The frames were powder coated grey. Let it Pour!

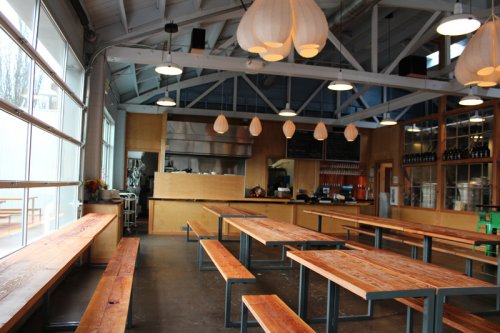

falling_sky_4

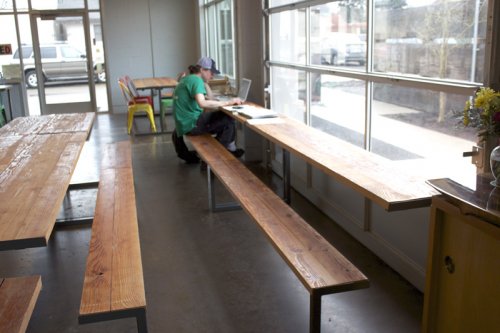

falling_sky_9

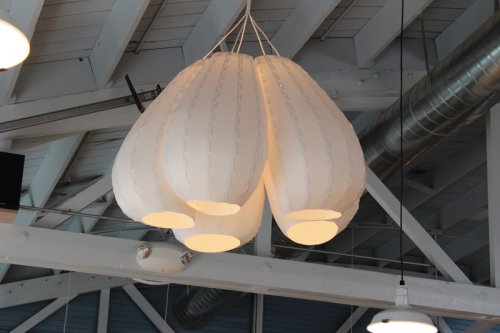

falling_sky_2

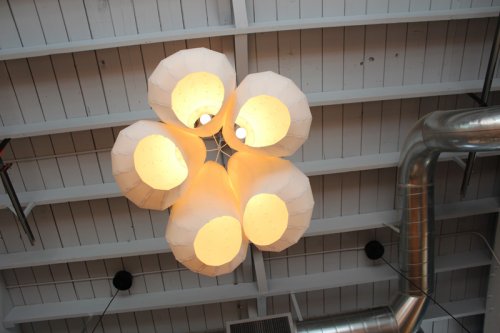

falling_sky_1

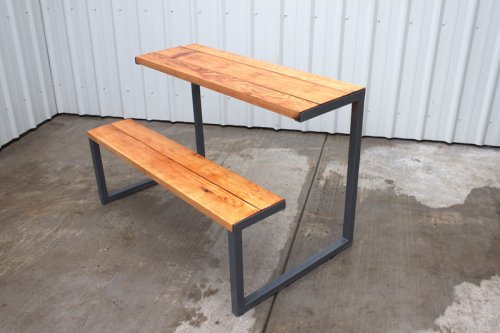

falling_sky_5

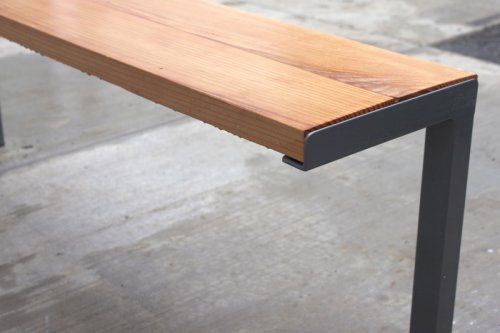

falling_sky_3

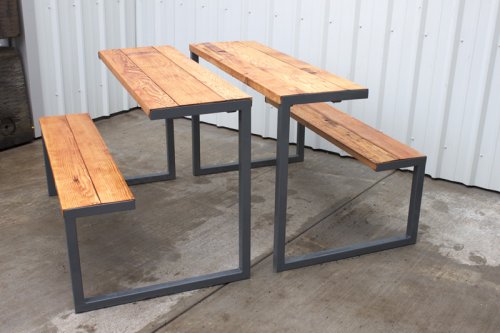

falling_sky_6

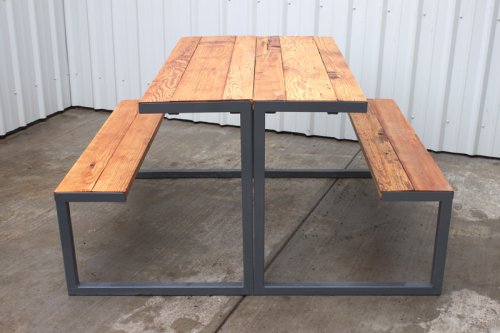

falling_sky_8

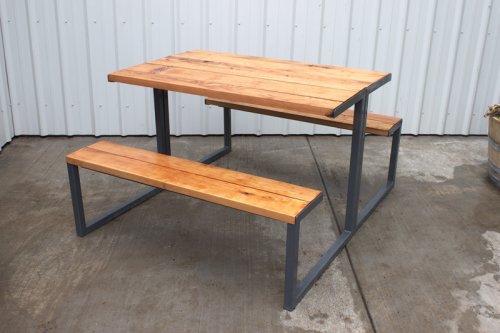

falling_sky_7

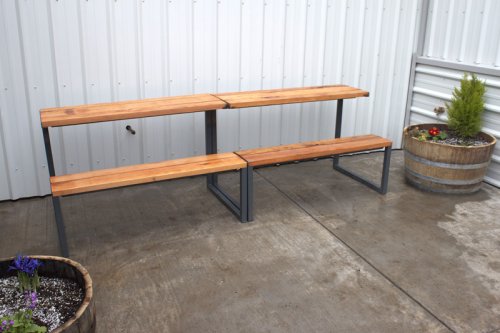

falling_sky_10

Falling Sky Lights – Final Version

Wednesday, April 18th, 2012

The final version of the lights lost the ‘hair’ but involved a much more sophisticated system of parametric manipulation and scripting for tabing production. A PDF explaining the specifics of the system and more images of the lights installed can be viewed here. On these final versions the tabing is still both structural and ornamental – but used subtly – as a shadow.

light_ver2_2
light_ver2_1
light_ver2_3

Falling Sky – Table Fabrication

Wednesday, April 18th, 2012

We fabricated the prototype for the table design in our own shop. This gave us the opportunity to make some critical design changes. A key detail shown in the images is the angled cutting of the structural tube – were they meet the side supports. This cut essentially hides the tube from the side – making it seem as if this thin piece of wood is spanning the full distance on its own – keeping the feel of the piece minimal. We actually had to find a second fabricator in Oregon because the first didn’t think the detail would work – and ideologically disagreed with the sense that the wood was spanning when it wasn’t. But we knew better!

table_fab_6

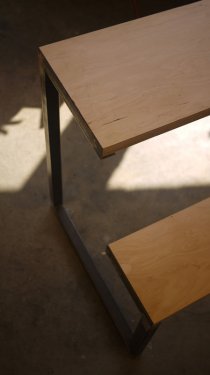

table_fab_7

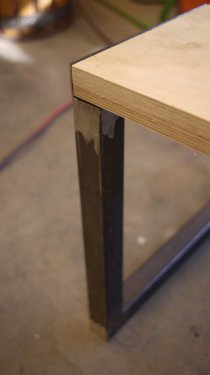

table_fab_1

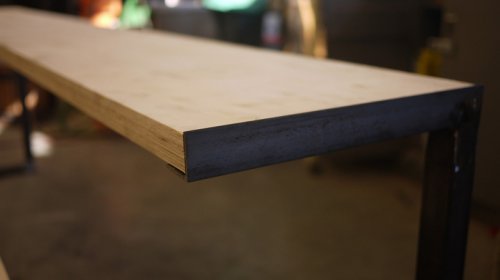

table_fab_2

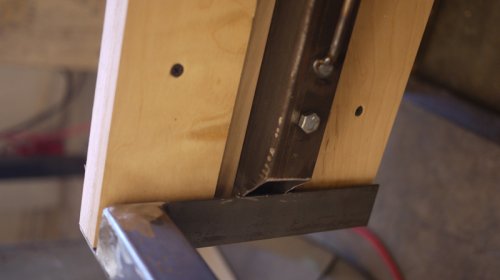

table_fab_3
table_fab_4

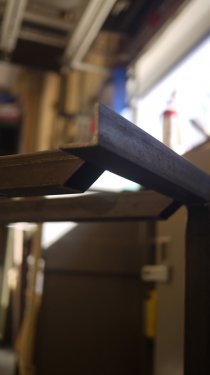

table_fab_5

Falling Sky – Table Design

Wednesday, April 18th, 2012

The table design for Falling Sky Brewery was inspired by the classic German beer hall table which is picnic table like and communal. This fit with the vision of the brewery. However – we wanted the design to be modern, minimal, flexible, and economical to build. Our idea was to use a standard steel angle and structural tubing for the framing – the wood was to be reclaimed fir salvaged from an old garage on site. We designed the tables in two halves that could work independently or together – and a series of modular sizes – 4′, 6′, and 8′ that would allow for the greatest flexibility in configuring the space.

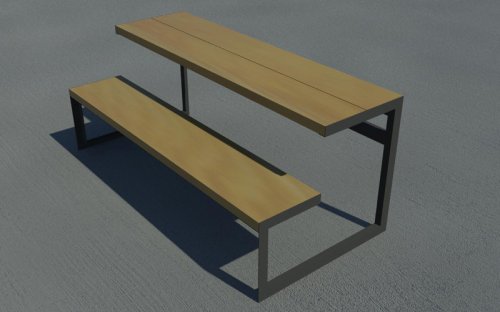

table_design_4

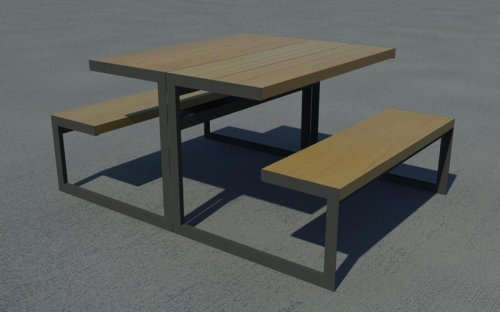

table_design_5

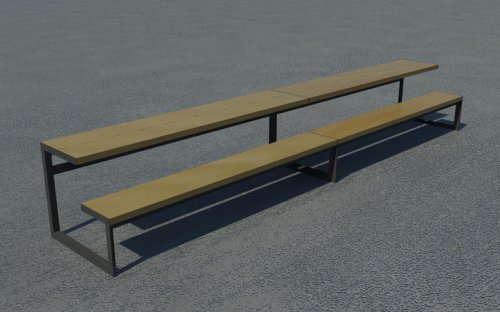

table_design_3

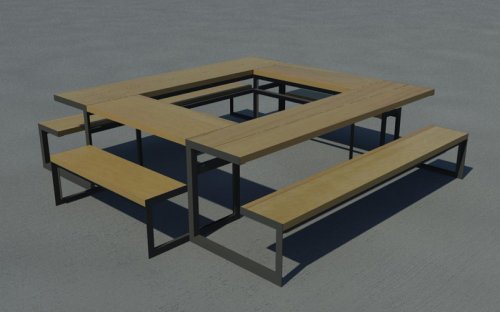

table_design_1

Falling Sky Lights – Version One

Wednesday, April 18th, 2012

This was a project that began last summer and was completed in January this year. We were commissioned by Rob Cohen to design lights and furniture for a new brew pub, Falling Sky Brewing, that he was opening in Eugene Oregon. These are some images of the prototype of the first version light – what we were calling the ‘hairy one.’ We designed a parametric system in grasshopper to be able to alter the overall form of the light – then after unfolding we ran a script we wrote to create the tabing. The drawing shows how we were experimenting with the morphology of the tendrils. Key was the idea that the tabing not only holds the piece together (i.e. is structural) but also plays an ornamental roll. The only fasteners in the piece are the ones that hold a laser cut acrylic bracket to the body of the light. We adapted an inexpensive IKEA fixture to use as a light source.

light_ver1_3
light_ver1_4
light_ver1_2
light_ver1_1
