LUMANOTUS | Double Torus Geometry

Tuesday, November 20th, 2012

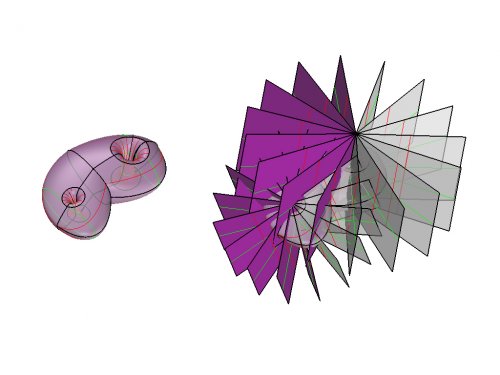

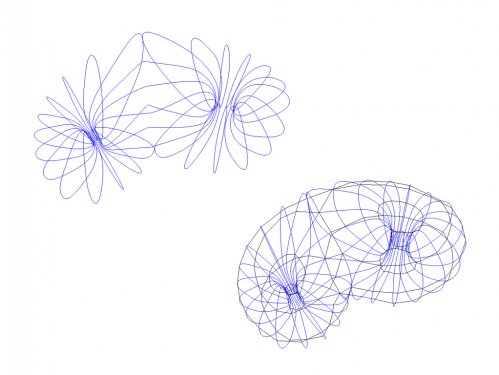

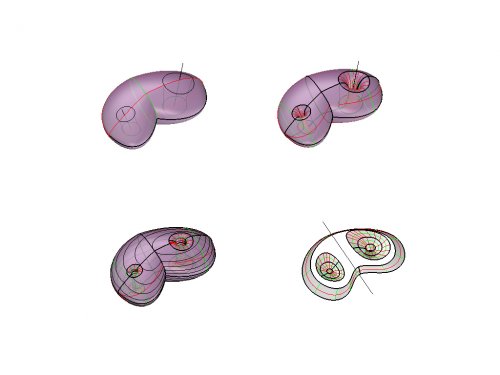

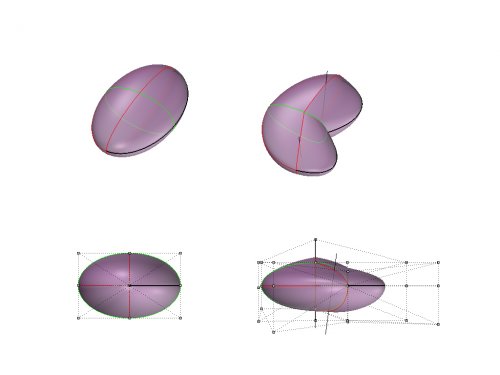

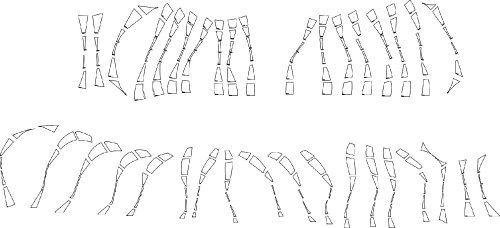

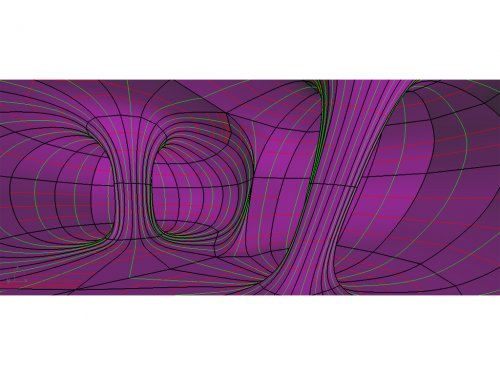

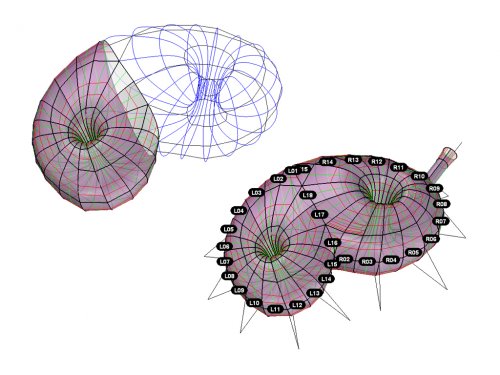

Below is a sequence of slides showing how we constructed the double torus geometry in the LUMANOTUS project. The form actually starts as an ellipsoid. Much manually tweaking was done to the lines after they were derived from the surface form. The final geometry needed to be developable (i.e. having the ability to roll flat and be cut from flat stock) so the final curved sections are constructed through ‘pulling’ straight lines along curved paths. We used the same technique in the Falling Sky lights project.

torus_01
torus_02
torus_03
torus_04
torus_05
torus_06a
torus_07

LUMANOTUS | Parting Shots

Tuesday, November 20th, 2012

A few final shots of the Lumanotus project by Mike Trandafirescu. The complete photo roll can be viewed here.

lumanotus_051
lumanotus_052
lumanotus_053
lumanotus_054
lumanotus_055
lumanotus_056
(Photos: Mike Trandafirescu)

LUMANOTUS | Opening Night

Wednesday, November 14th, 2012

The weather was cool – but the wind held off to make the opening night of LUMANOTUS a success. Tonight Anca and I give a talk on the project and our work at the Center for Design Innovation in Winston Salem, NC.

lumanotus_038
lumanotus_039
lumanotus_040
lumanotus_041
lumanotus_042
lumanotus_043
lumanotus_044
lumanotus_045
lumanotus_046
lumanotus_047
lumanotus_048
lumanotus_049
lumanotus_050
(photos: area.architecture)

LUMANOTUS | on site run-through

Monday, November 12th, 2012

We are on site with the team in Winston Salem setting up the project in Winston Square Park. Below are a few images from the initial run-through last night. Images and lights are sequenced and animated. There are 4 separate light shows from 4 designers. Another run-through this evening if the weather cooperates and then the installation opens to the public from November 13 – 17, 7pm-10pm.

TOWER_PurpleGrid
TOWER_GreenSmoke
TOWER_Dancer
TOWER_REDskeleton
P1100295
P1100326
TORUS_EXTPanorama1
TORUS_Panorama1sm
(photos: area.architecture)

LUMATNOTUS | test inflation

Friday, November 9th, 2012

On Wednesday and Thursday this week we test inflated the DOUBLE TORUS and TOWER in the courtyard of TCAUP. Below are some images of the results. We still have some tweaking to do on inflation pressures and need to finish the anchoring – but in general it was a success! Thanks to the crew for all your hard work over this past month. Principals: Glenn Wilcox and Anca Trandafirescu; Assembly Crew: Secil Taskoparan, Joshua Kehl, Erika Lindsay, Jeremy Luebker, Rebecca Braun, Le Nguyen, Jake Newsum.

lumanotus_024
lumanotus_022
lumanotus_023
(Photos: Jeremy Luebker)
lumanotus_021
(Photo: Joshua Kehl)
lumanotus_025
lumanotus_026
lumanotus_027
lumanotus_028
lumanotus_029
(Photos: Jeremy Luebker)
lumanotus_030
lumanotus_031
lumanotus_033
lumanotus_036
lumanotus_034
lumanotus_035
lumanotus_037
(Photos: Secil Taskoparan)

LUMANOTUS | Drawings – Gallery Show

Saturday, November 3rd, 2012

Drawings and models for the LUMANOTUS project are on display at the Swift Wade Gallery in Winston-Salem, NC, from November 2 – 17. The full scale inflatable constructions and lighting project will be installed in Winston Square Park in Winston-Salem from November 13 – 17. The project will be lit and open to the public from 7pm – 10pm. The project is made possible with generous public support, funding from UNCSA and the Taubman College of Architecture and Urban Planning at the University of Michigan.

TOWER FINAL DWG_ai5
TOWER FINAL MODEL [Converted]
TOWER FINAL DWG_ai5
