FLYING CARPET 2

Monday, November 9th, 2015

Flying Carpet 2 was installed this summer @ Wynford Elementary School in Bucyrus Ohio. The piece is comprised of 3 separate sections and was designed using the same code and fabrication sequence implemented with the first Flying Carpet project.

FC2_01
FC2_02
FC2_03
FC2_04
FC2_05
FC2_06

c-LITH | Awarded R+D Citation

Friday, July 25th, 2014

c-Lith was awarded a Citation in Architect Magazine 2014 R+D Awards and is featured both online and in the July 2014 issue.

A link to the online article is here.

A link to the digital addition of July 2014 Architecture Magazine is here.

Pages from Arch_Mag_July_2014
Cover Photo: Brian Kelly

c-LITH: Carbon Fiber Architectural Units

Friday, May 23rd, 2014

c-LITH is the reconsideration of the architectural building unit through the exploration of new composite techniques and materials. Our project develops individual components that exploit the strength, lightness, and variability possible with carbon fiber filaments when paired with computation, digital fabrication, and hand assembly.

Traditionally, architectural units made of brick or concrete are small and multiple, heavy, difficult to vary, and are much better in compression than tension. Using carbon fiber filaments to create variable units allows for larger individual units that can vary in both shape and structural performance as needed. Our units, pound for pound, have higher capacities in both compression and tension and therefore impact the design in both the vertical and horizontal dimensions. Most importantly, however, our units address the use of carbon fiber at the scale of architectural production.

The images below are of the project installed @ the Taubman College Liberty Annex Gallery as part of the Research Through Making Exhibit, March 12 – April 20, 2014.

IMG_3424_A
IMG_3453_A
IMG_3302_A
IMG_3438_A
IMG_3416_A
IMG_3449_A

PROJECT TEAM
DESIGN: Glenn Wilcox and Anca Trandafirescu
FABRICATION AND ASSEMBLY: Glenn Wilcox, Anca Trandafirescu, Megha Chandrasekhar, Troy Hillman, Secil Taskoparan, Rebecca Braun, Ryan Mason, Sam Seeger, Peter Choi, Chris Pine and John Larmor
FUNDING: Grant from the Taubman College of Architecture and Urban Planning, University of Michigan

CARBON FIBER BAKING OVEN

Friday, May 23rd, 2014

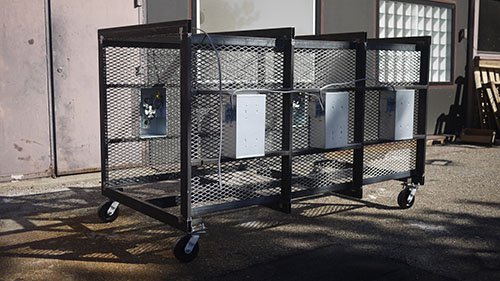

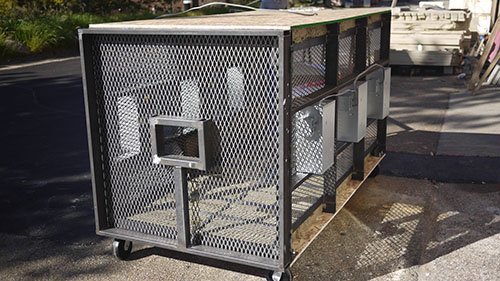

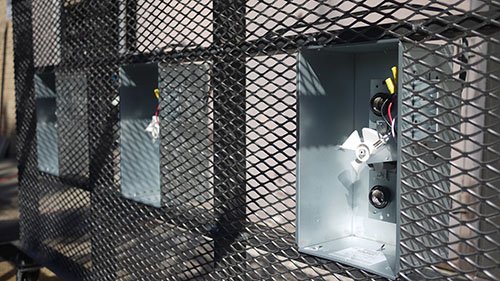

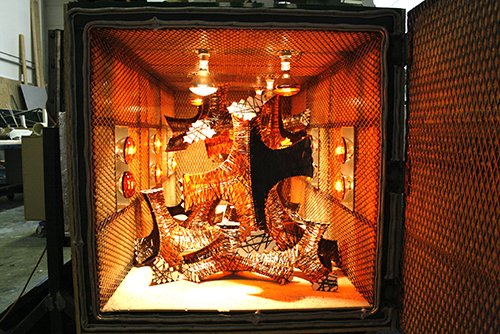

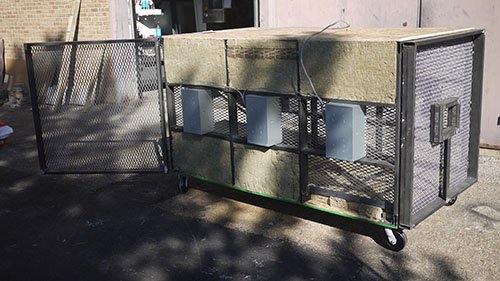

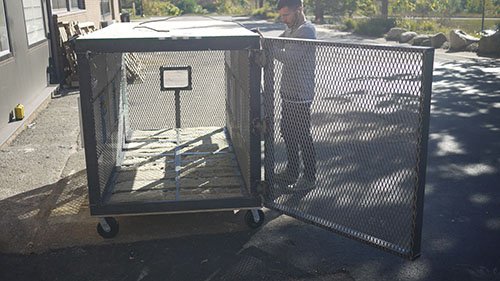

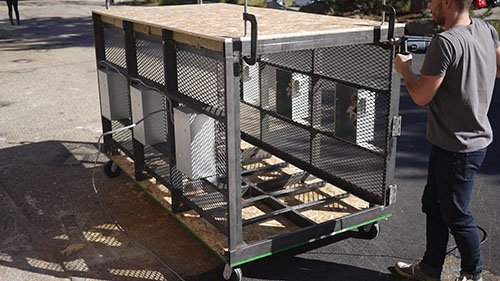

We are currently conducting a research project on the use of pre-preg carbon fiber filament for the production of variable architectural building units. This required the design and construction of a baking oven. As the pre-preg only needs to be baked at a low 265 degrees Fahrenheit we could use infrared lamps as our heat source. The exterior dimension of the oven is 4′x4′x8′ and is constructed from a steel tube frame. Roxul is used as insulation with diamond mesh serving as the interior walls of the oven and concrete tile board the floor. The exterior is clad in OSB. Six Nutone heat lamp fixtures were used to hold the twelve 250w infrared lamps. We later discovered we needed to add eight more lamps to acquire the proper temperature. These were affixed to the oven ceiling with simple off the shelf ceramic fixtures. It was decided to run the two sides of the oven on separate circuits as it allowed us to run it from a 120v power source – this also proved useful as during one bake we lost a relay for one side of the oven and were able to maintain temperature by just using the working side. The temperature is regulated by a PID controller from Auber Instruments. Construction images and parts baking image below:

P1140239
P1140248
P1140252
P1140257
P1140263
P1140264
_MG_9034

PROJECT TEAM
DESIGN: Glenn Wilcox
FABRICATION: Glenn Wilcox, Troy Hillman and Megha Chandrasekhar
PHOTOS: Glenn Wilcox and Megha Chandrasekhar

FLYING CARPET | Installed

Wednesday, September 18th, 2013

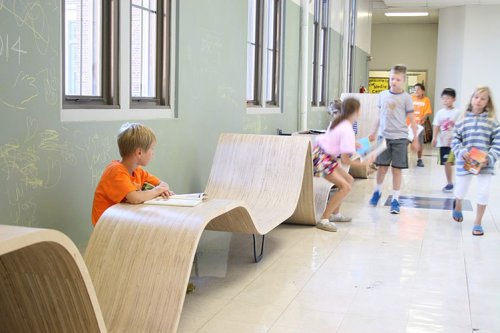

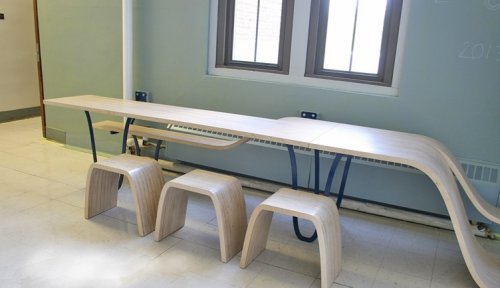

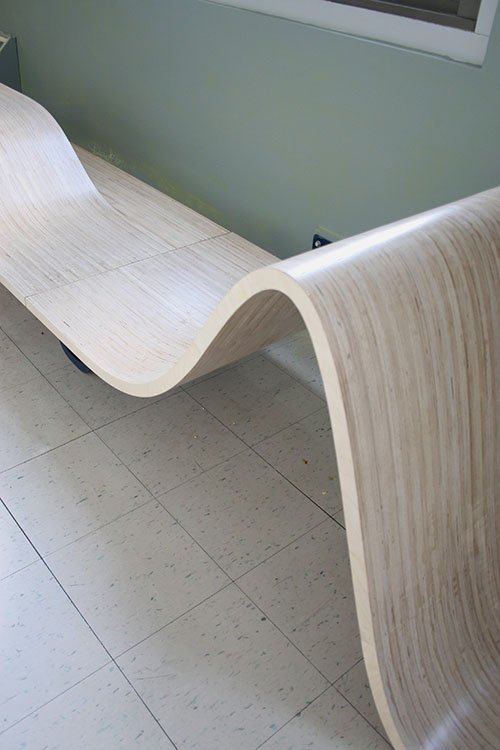

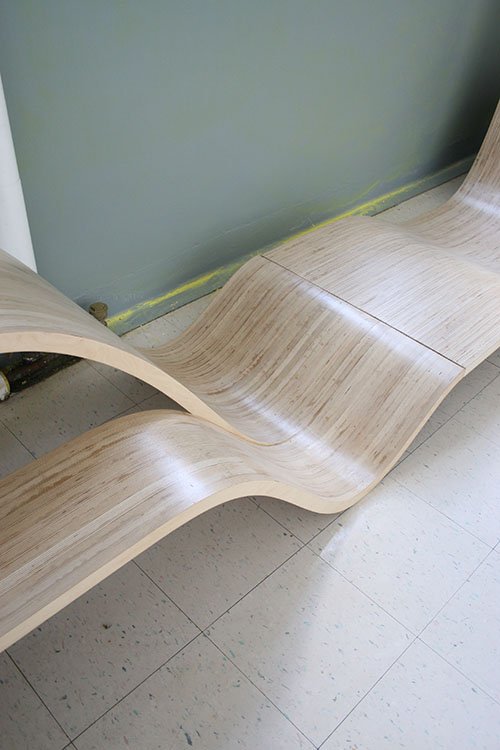

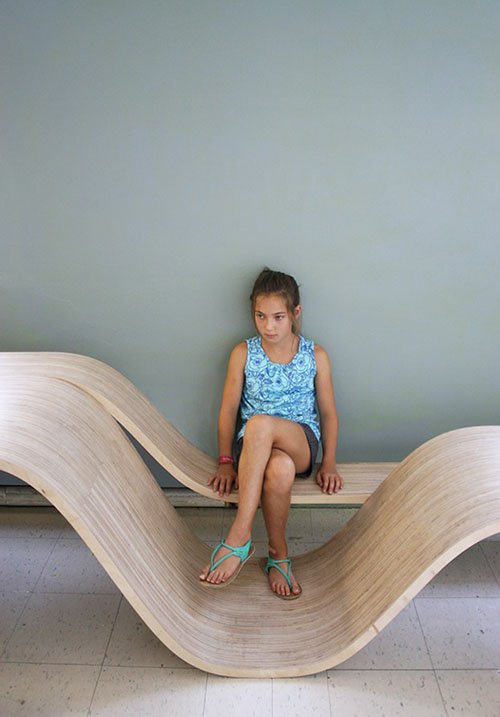

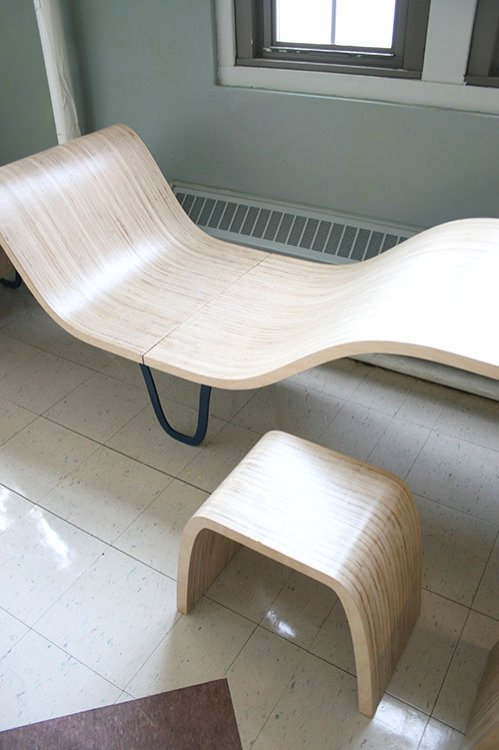

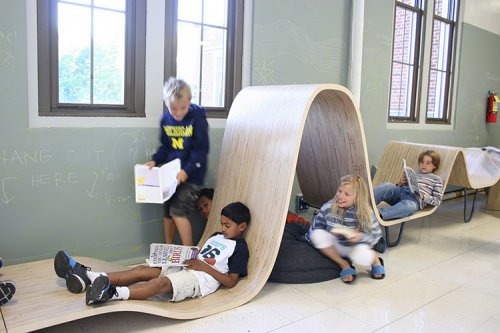

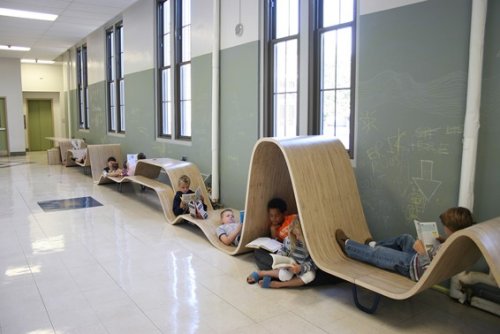

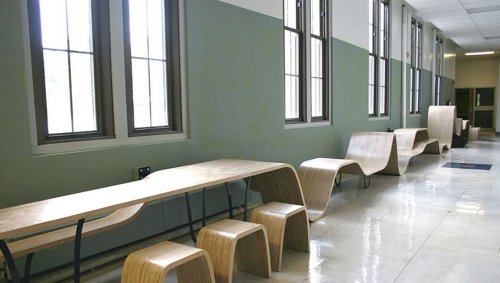

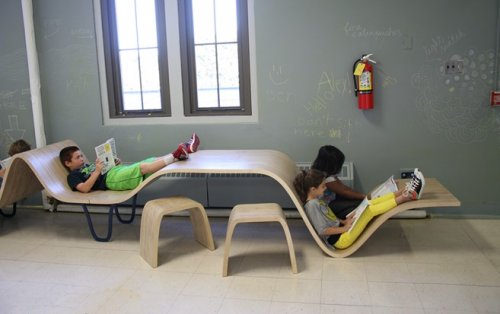

Pictures of the flying carpet project installed and in use — from the first week of school. See post below this one for a full description of the project and the process of its fabrication.

FC_01
FC_02
FC_04
FC_05
FC_03
FC_010
FC_06
FC_07
FC_08
FC_09

PROJECT TEAM
DESIGN: Glenn Wilcox and Anca Trandafirescu
MODEL FABRICATION: Jake Newsum and Secil Taskoparan
FABRICATION: Glenn Wilcox, Troy Hillman, Megha Chandrasekhar and Anca Trandafirescu
PHOTOS: Glenn Wilcox and Troy Hillman

FLYING CARPET | Fabrication

Monday, September 16th, 2013

The Flying Carpet is a piece of microarchitecture that converts a long, narrow volume of space in Angell Elementary School into a reading, writing, lounging, and play space for the children occupants of the building. Located on the second floor among the 3rd, 4th, and 5th grade classrooms, the Flying Carpet was designed to retain the existing programmatic uses of the space but give them beautiful and lively accommodation. Folk stories in many cultures tell of a mythical flying carpet that transport their riders to distant places faster than the wind. Recalling these stories from our own childhood, the flying carpet became the apt poetic metaphor for the space’s primary activities: reading, writing, and imagining… the fastest ways we know to travel elsewhere.

FC_SCRIPT

The computer script we wrote to generate the final form for the piece had to be able to produce widely varying sectional shapes, but also had to conform precisely to children’s body dimensions. Once written, we then could input conditional statements to control the table, bench, lounge, and variable “bump” heights.

variations

Our early variations explored the use of double curved surfaces and alternative leg supports.

final

The final design responds to particular site conditions and utilizes the curvature and “landing” of the surface for self-support in addition to steel legs which follow the same geometry of the surface.

model_composition

Since we were also going to be the fabricators on the project we made a series of scale models to study and refine the geometry in greater detail, and also to understand the process of fabrication and assembly of the final full scale piece.

large_axo

For ease of fabrication, transport, and assembly, the final design is divided into seven sections. The steel support legs also serve a secondary role of joining the sections to each other.

exploded_axo

Each section is broken down into smaller elements which overlap to create a stronger bonding surface. Dowel holes are drilled in each part to facilitate alignment and rapid assembly.

cut_sheets

We developed cut sheets for CNC and Water-Jet cutting of both the wood and steel elements. It’s important to note that these were output directly from a 3D model to cutting files – no construction documents were made for the project.

CONSTRUCTION_1

After CNC machining, elements are laid out in order prior to assembly. Sections are glued and clamped in stages.

CONSTRUCTION_2

Parts are cleaned and sanded prior to section assembly.

CONSTRUCTION_3

Final sanding and finishing of one of the sections.

IMG_0984
IMG_0985
IMG_0986

PROJECT TEAM
DESIGN: Glenn Wilcox and Anca Trandafirescu
MODEL FABRICATION: Jake Newsum and Secil Taskoparan
FABRICATION: Glenn Wilcox, Troy Hillman, Megha Chandrasekhar and Anca Trandafirescu
PHOTOS: Glenn Wilcox and Troy Hillman

CARBON FIBER LIGHTS

Monday, September 16th, 2013
LAMP_A_FRONT_LIT
LAMP_A_FRONT
LAMP_A_SIDE_LIT
LAMP_A_SIDE
carbon_lights

PROJECT TEAM:
DESIGN: Anca Trandafirescu and Glenn Wilcox
FABRICATION: Anca Trandafirescu, Glenn Wilcox and Troy Hillman
PHOTOS: Glenn Wilcox and Anca Trandafirescu

LUMANOTUS | Double Torus Geometry

Tuesday, November 20th, 2012

Below is a sequence of slides showing how we constructed the double torus geometry in the LUMANOTUS project. The form actually starts as an ellipsoid. Much manually tweaking was done to the lines after they were derived from the surface form. The final geometry needed to be developable (i.e. having the ability to roll flat and be cut from flat stock) so the final curved sections are constructed through ‘pulling’ straight lines along curved paths. We used the same technique in the Falling Sky lights project.

torus_01
torus_02
torus_03
torus_04
torus_05
torus_06a
torus_07

LUMANOTUS | Parting Shots

Tuesday, November 20th, 2012

A few final shots of the Lumanotus project by Mike Trandafirescu. The complete photo roll can be viewed here.

lumanotus_051
lumanotus_052
lumanotus_053
lumanotus_054
lumanotus_055
lumanotus_056
(Photos: Mike Trandafirescu)

LUMANOTUS | Opening Night

Wednesday, November 14th, 2012

The weather was cool – but the wind held off to make the opening night of LUMANOTUS a success. Tonight Anca and I give a talk on the project and our work at the Center for Design Innovation in Winston Salem, NC.

lumanotus_038
lumanotus_039
lumanotus_040
lumanotus_041
lumanotus_042
lumanotus_043
lumanotus_044
lumanotus_045
lumanotus_046
lumanotus_047
lumanotus_048
lumanotus_049
lumanotus_050
(photos: area.architecture)
